M Line Motor

  • DESCRIPTION:
  • -220 kW to 15 000 kW -2 to 8 pole -2300 V to 13 800 V - Frames 355 to 710


W60 High Performance Motors

  • DESCRIPTION:
  • -220 kW to 15 000 kW -2 to 8 pole -2300 V to 13 800 V -Frames 355 to 710


W22X Flameproof Motors

  • DESCRIPTION:
  • .


M Mining Slipring Motors

  • DESCRIPTION:
  • -250 kW to 10 000 kW -2 to 14 pole -400 V to 13 800 V -Frames 355 to 1000 -Integrated brush control system


W50 High Performance Motors

  • DESCRIPTION:
  • -75 kW to 1250 kW -2 to 12 pole -400 V to 6600 V -Frames 315 to 450 -Integrated brush control system


Synchronous Motors

  • DESCRIPTION:
  • -Up to 110 000 kW -150 to 3600 r/min -400 V to 13 800 V -Frames 280 to 1000


Low Voltage Slipring Motors

  • DESCRIPTION:
  • -1kW to 450kW -2 to 10 pole -380-415v or 525-550 -Frames 100 to 450


W40 ODP

  • DESCRIPTION:
  • -11kW to 1400kW -2,4,6 to 10 pole -380-415v or 525-550 -Frames 100 to 450

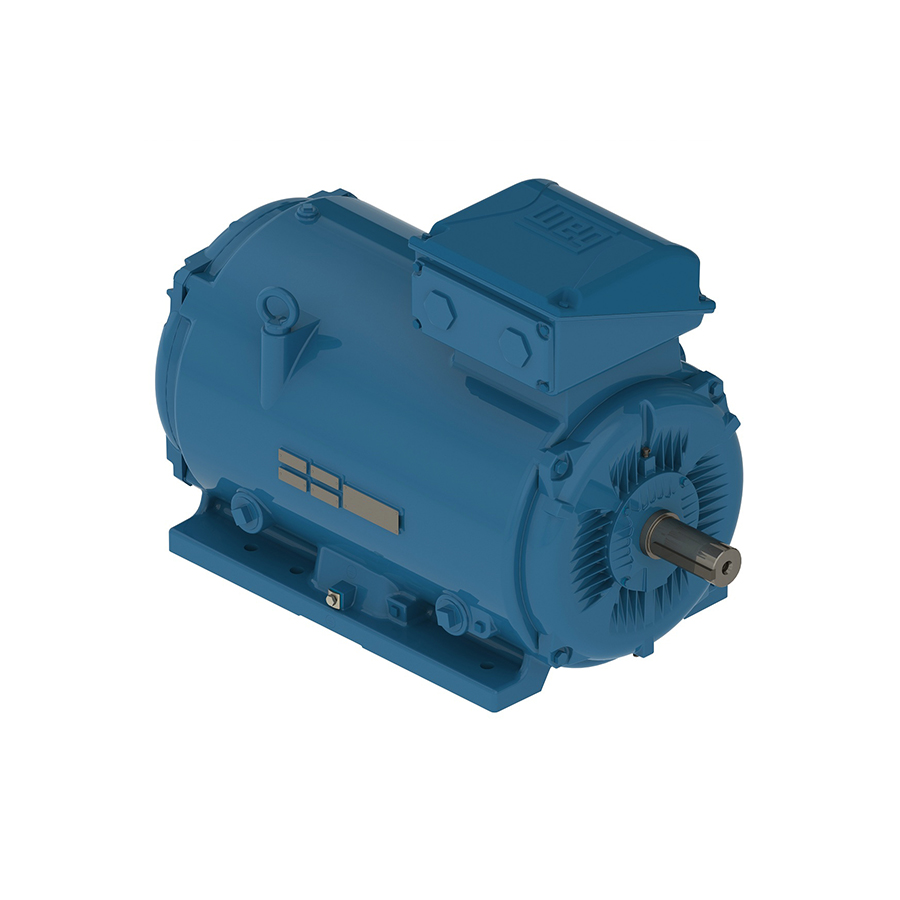

Water Cooled Motors

  • DESCRIPTION:
  • -18.5kW to 2800 kW -2,4,6 to 8 pole -400V or 560 -Frames 180 to 560

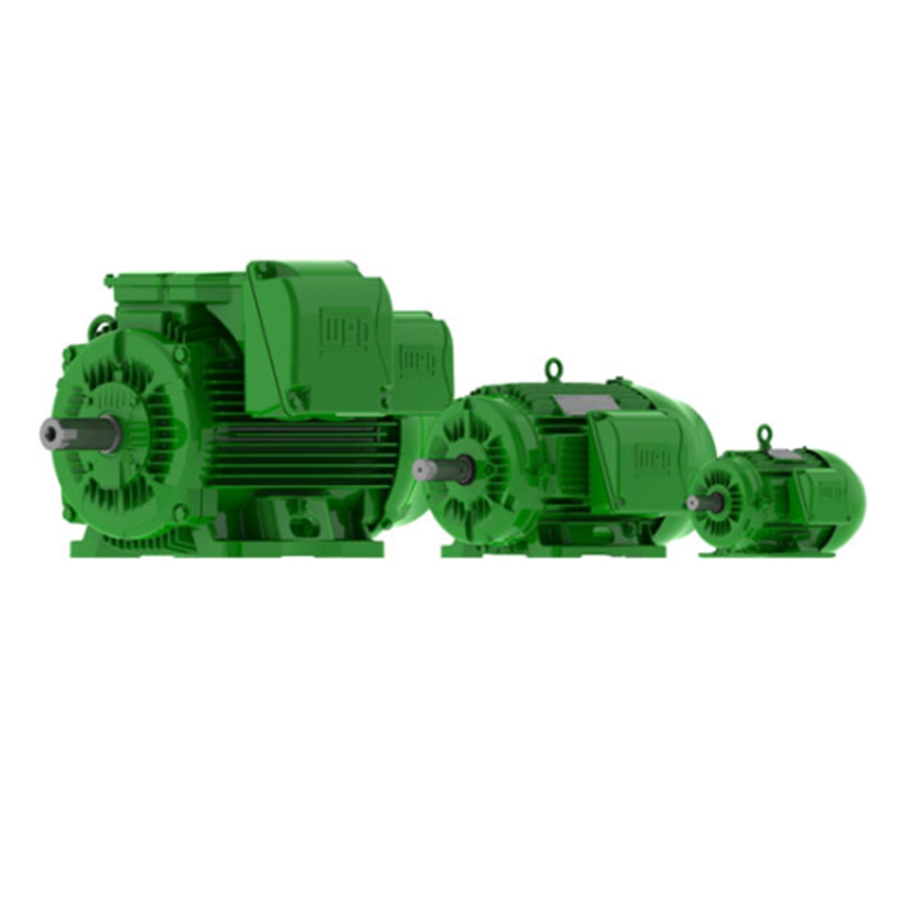

Hazardous Area Motors

  • DESCRIPTION:
  • - 0.12 kW to 500 kW -2, 4, 6 or 8 pole -230/400 V (Frames 63 to 100) -400/690 V (Frames 112 to 355) -525?550 V (Frames 63 to 100) -525?550?575 V/1000 V -Frames 160 to 355

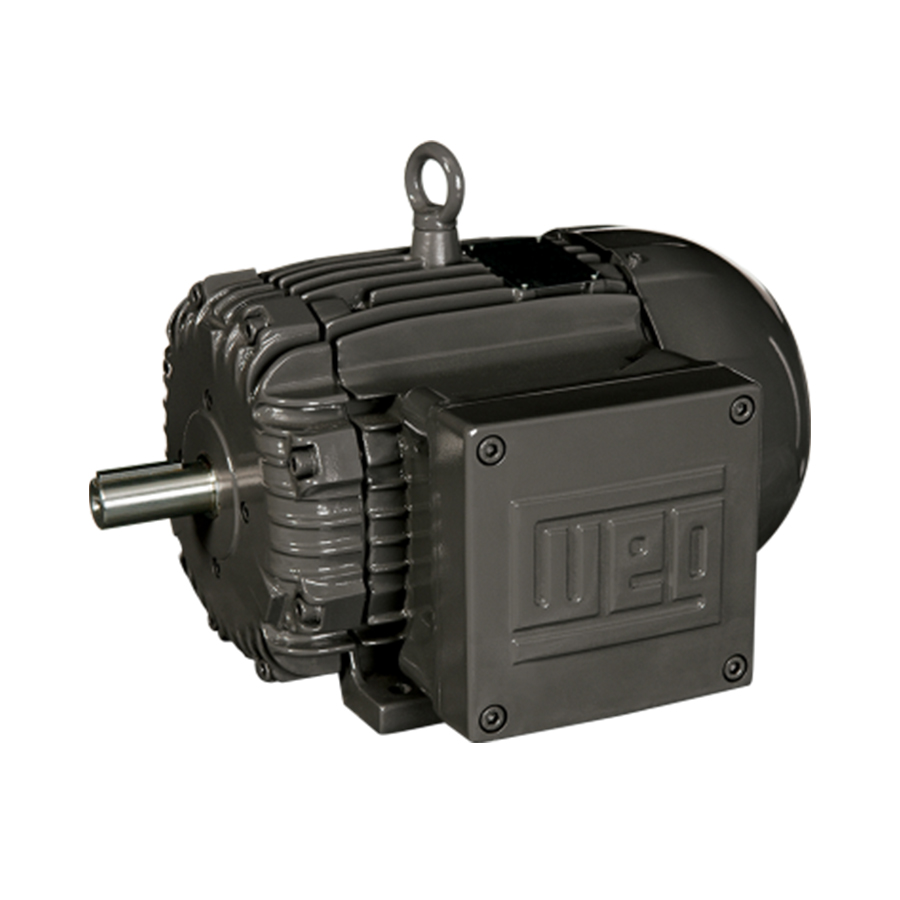

W21 Flameproof Motors

  • DESCRIPTION:
  • -Ex db I Mb and -Ex db IIB T4 Gb -400V or 560 -0.37 kW to 330 kW -2, 4, 6 or 8 pole -380-415 V or 525-550/950V -Frames 90 to 355

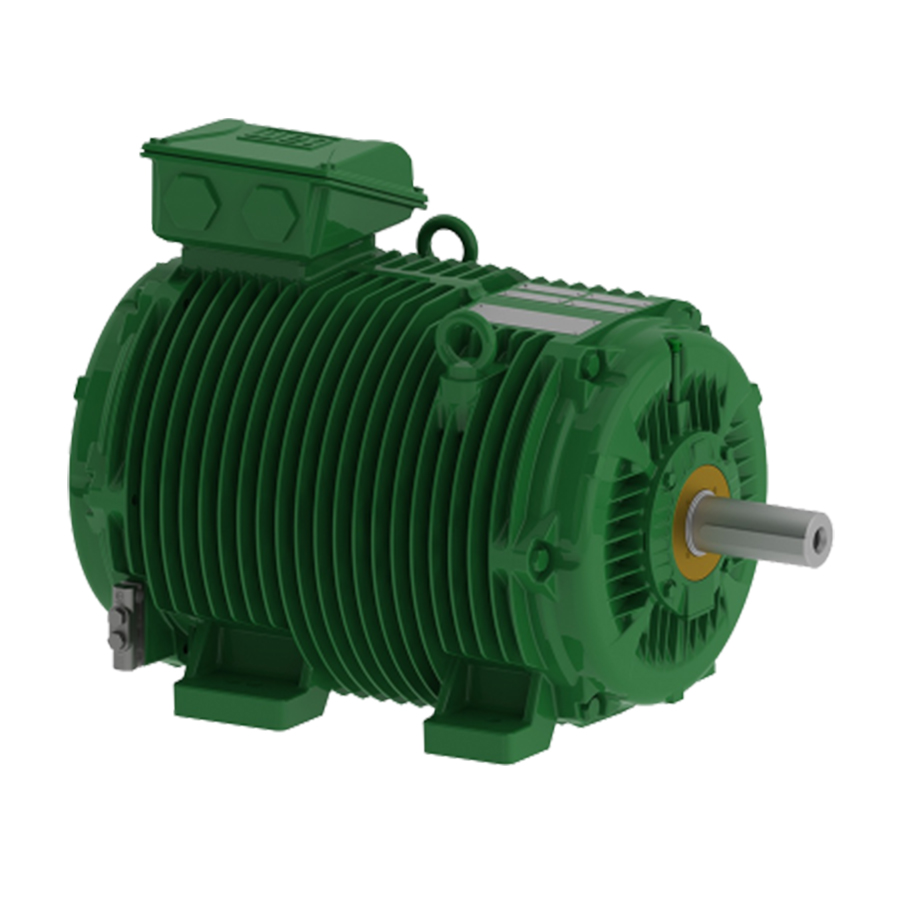

Roller Table Motors

  • DESCRIPTION:
  • -3 kW to 250 kW -2 to 12 pole -400V or 560 -400/690 V or 525?550 V -2, 4, 6 or 8 pole -Frames 132 to 355

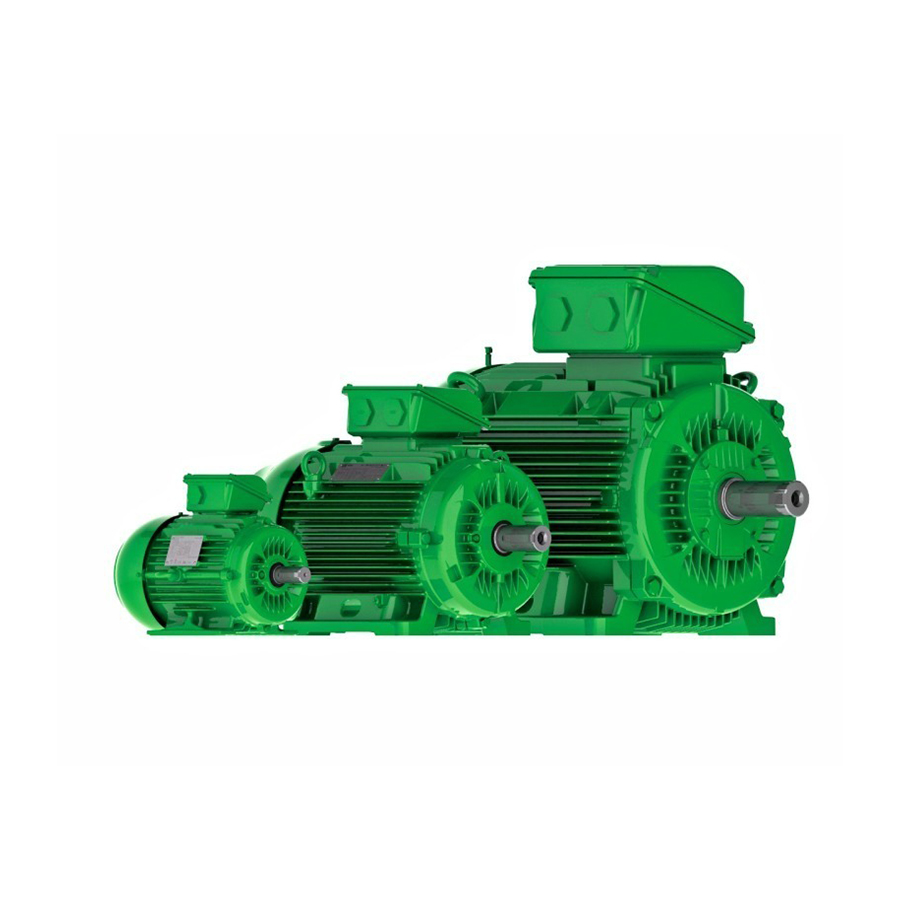

W22 Premium Range

  • DESCRIPTION:
  • -0.12 kW to 500 kW -2, 4, 6 or 8 pole -230/400 V (Frames 63 to 100) -400/690 V (Frames 112 to 355) -525?550 V (Frames 63 to 100) -Frames 160 to 355

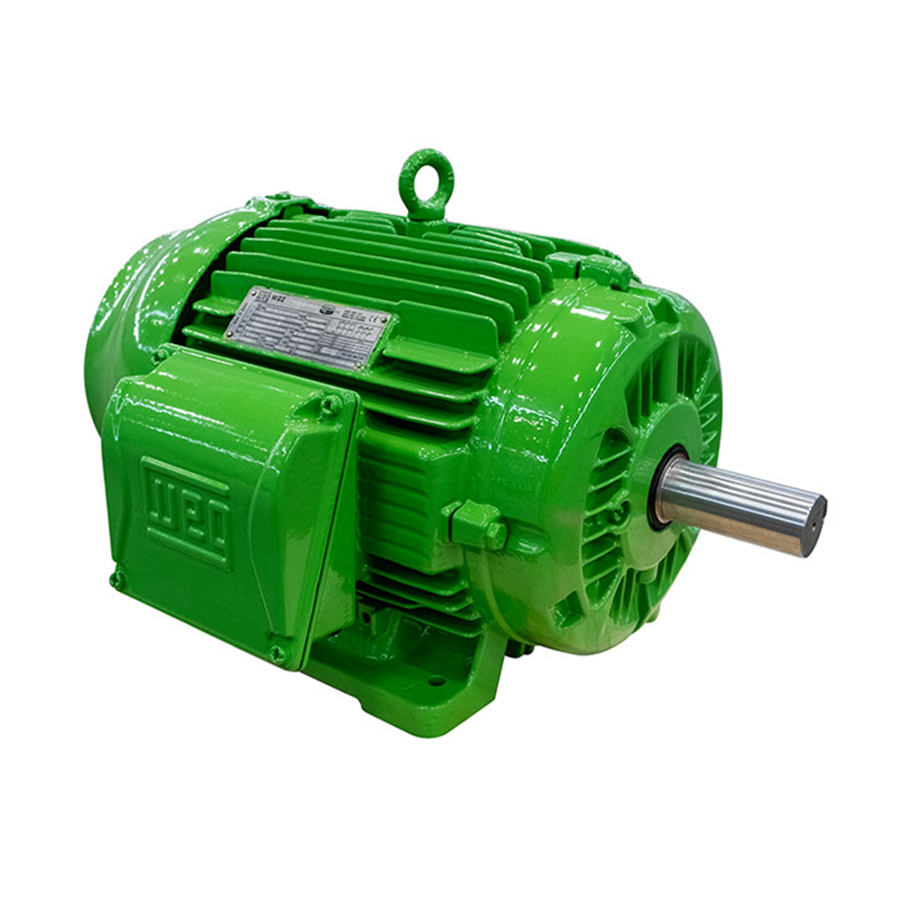

IE4 Super

  • DESCRIPTION:
  • -3 kW to 500 kW -2, 4, 6 or 8 pole -230/400 V (Frames 63 to 100) -400/690 V (Frames 112 to 355) -525?550 V (Frames 63 to 100) -525?550?575 V/1000 V (Frames 160 to 355)

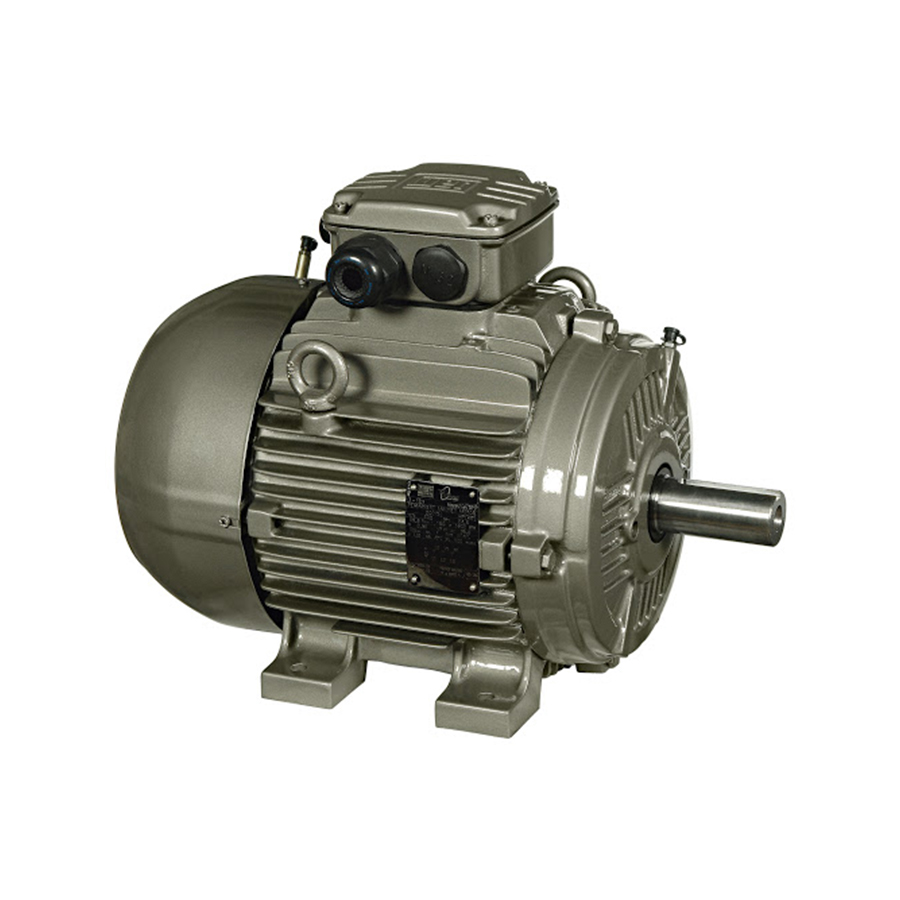

WMagnet

  • DESCRIPTION:
  • -3 kW to 315 kW -1000, 1500 or 3000 r/min -380?415 V or 525?550 V -Frames 132 to 355

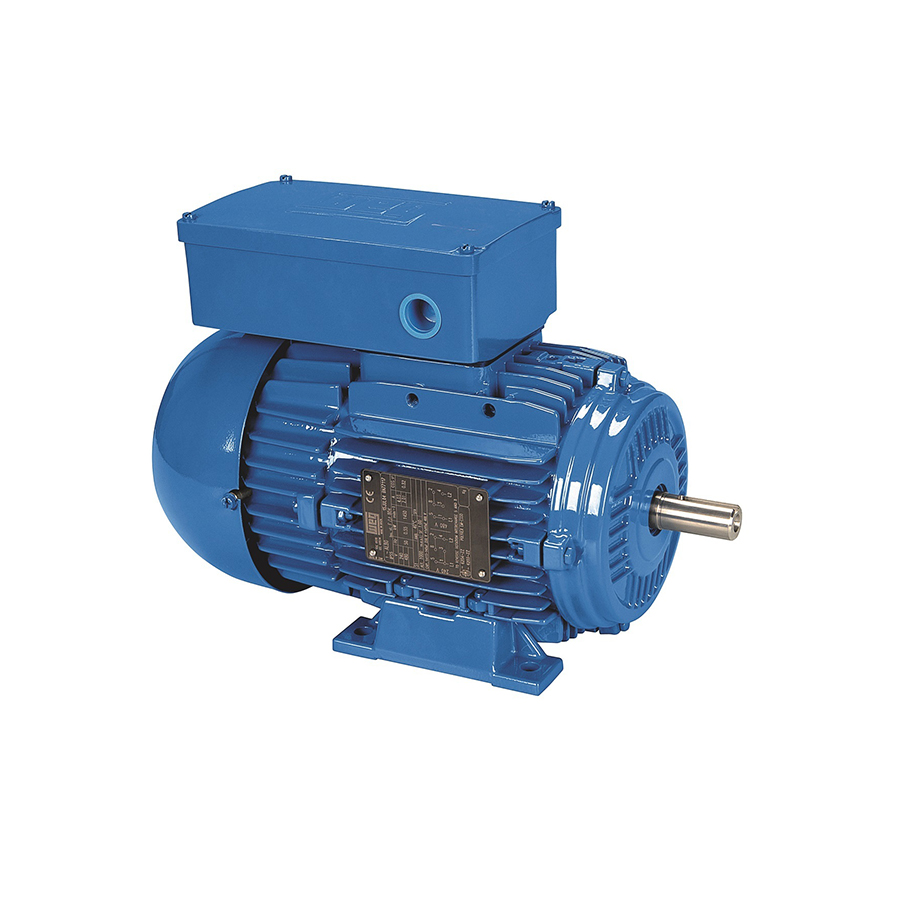

Single Phase Motors

  • DESCRIPTION:
  • -0.25 kW to 7.5 kW -2 or 4 pole -220/440 V -Frames 63 to 132

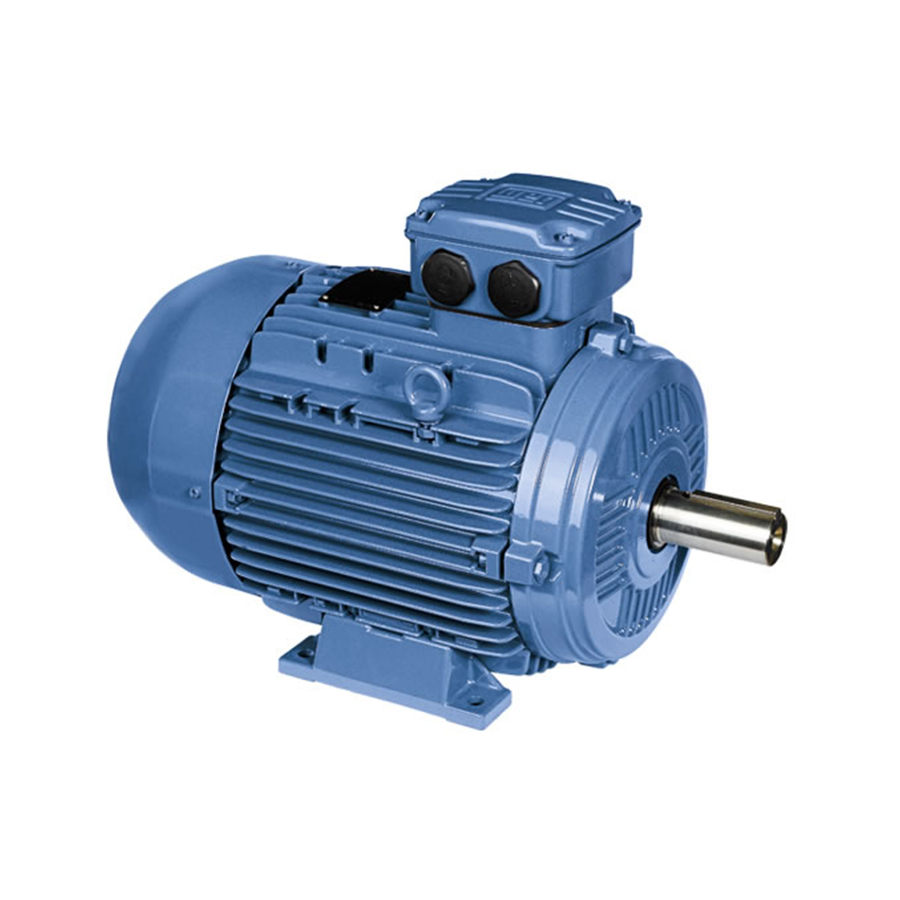

Fan and Exhaust Motors

  • DESCRIPTION:
  • -0.25 kW to 7.5 kW -2 or 4 pole -220/440 V -Frames 63 to 132

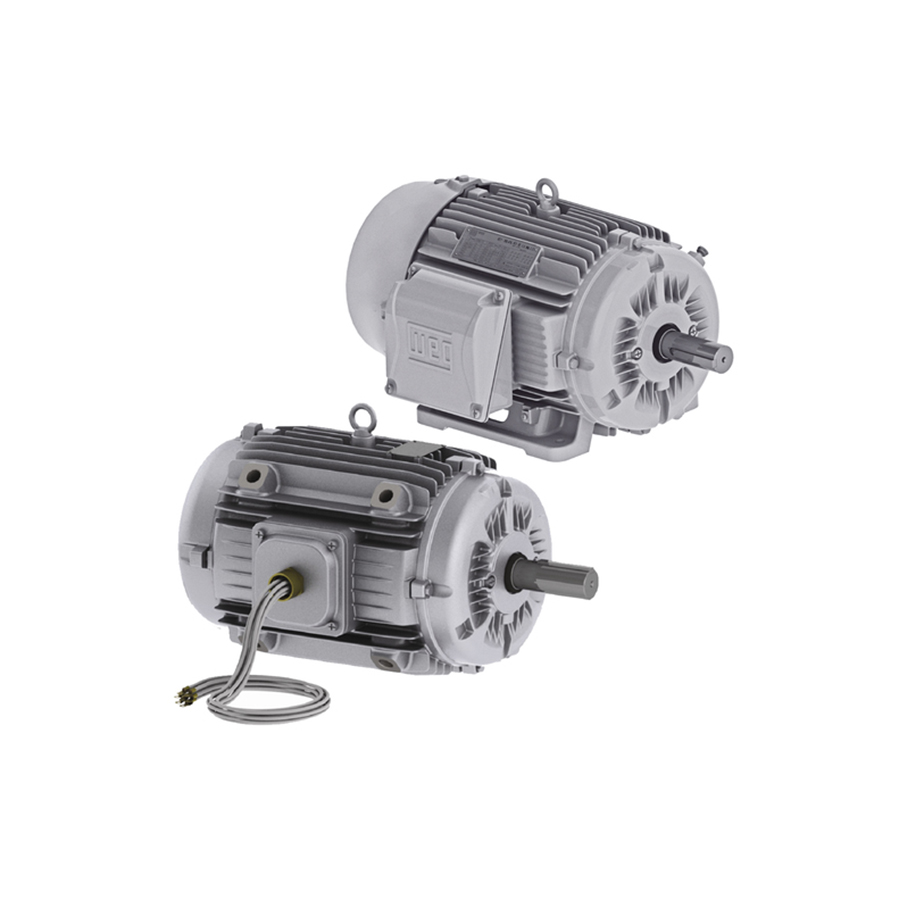

Smoke Extraction Motors

  • DESCRIPTION:
  • -0.12 kW to 500 kW -2, 4, 6 or 8 pole -380?415 V or 525?550 V -Frames 63 to 355 -300 °C for 2 hours or -400 °C for 2 hours

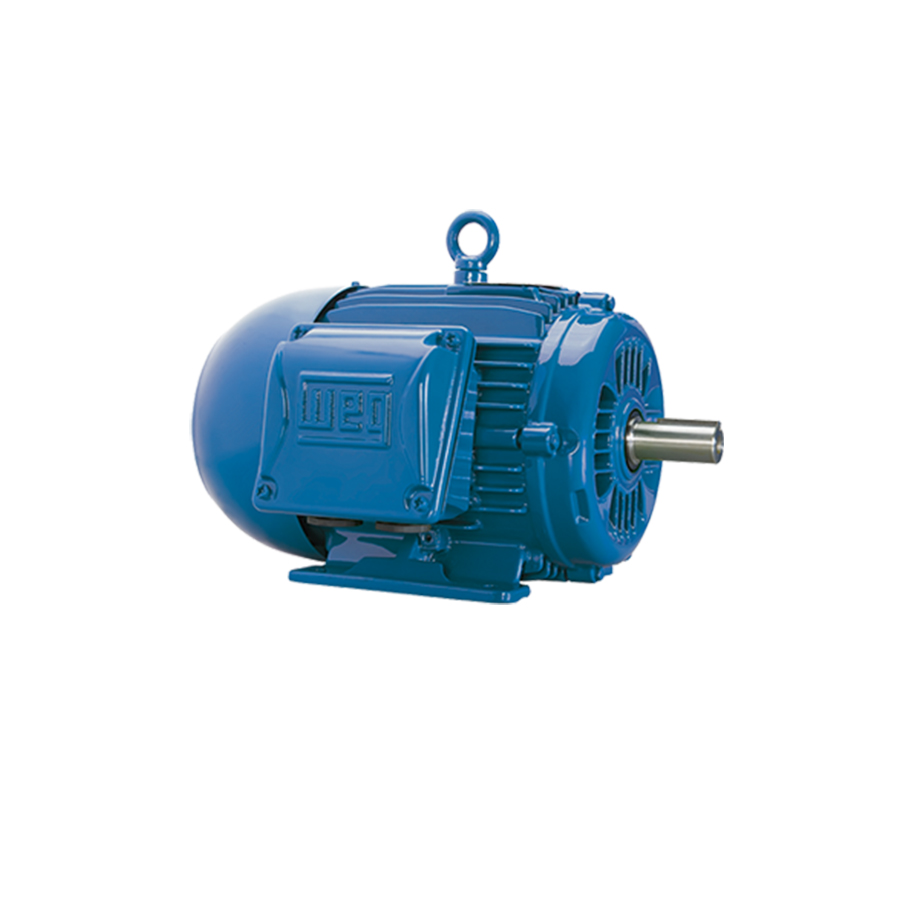

W20

  • DESCRIPTION:
  • -0.18 kW to 355 kW -2, 4, 6 or 8 pole -230/400 V (Frames 63 to 100) -400/690 V (Frames 112 to 355) -525?550 V (Frames 63 to 355)


Aluminium Motors

  • DESCRIPTION:
  • -0.18 kW to 7.5 kW -2, 4 or 6 pole -230/400 V (Frames 63 to 100) -400/690 V (Frames 112 to 132) -525?550 V (Frames 63 to 132)

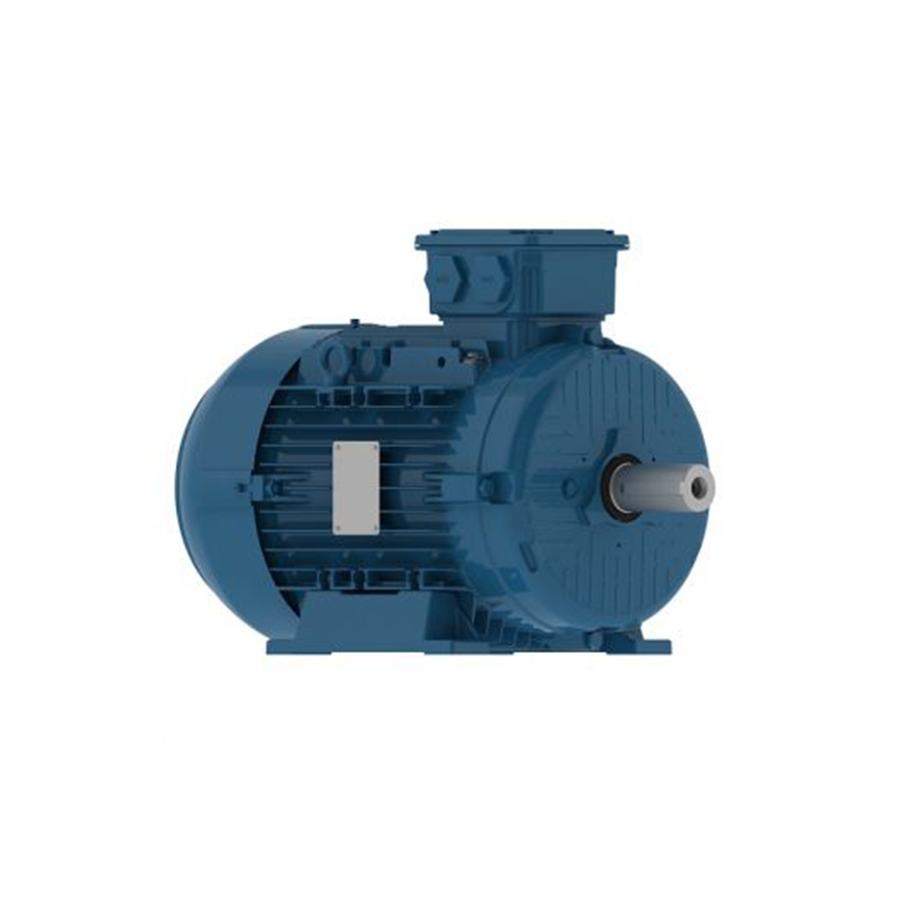

Brake Motors

  • DESCRIPTION:
  • -0.12 kW to 55 kW -2, 4, 6 or 8 pole -230/400 V (Frames 63 to 100) -400/690 V (Frames 112 to 225) -525?550 V (Frames 63 to 225)

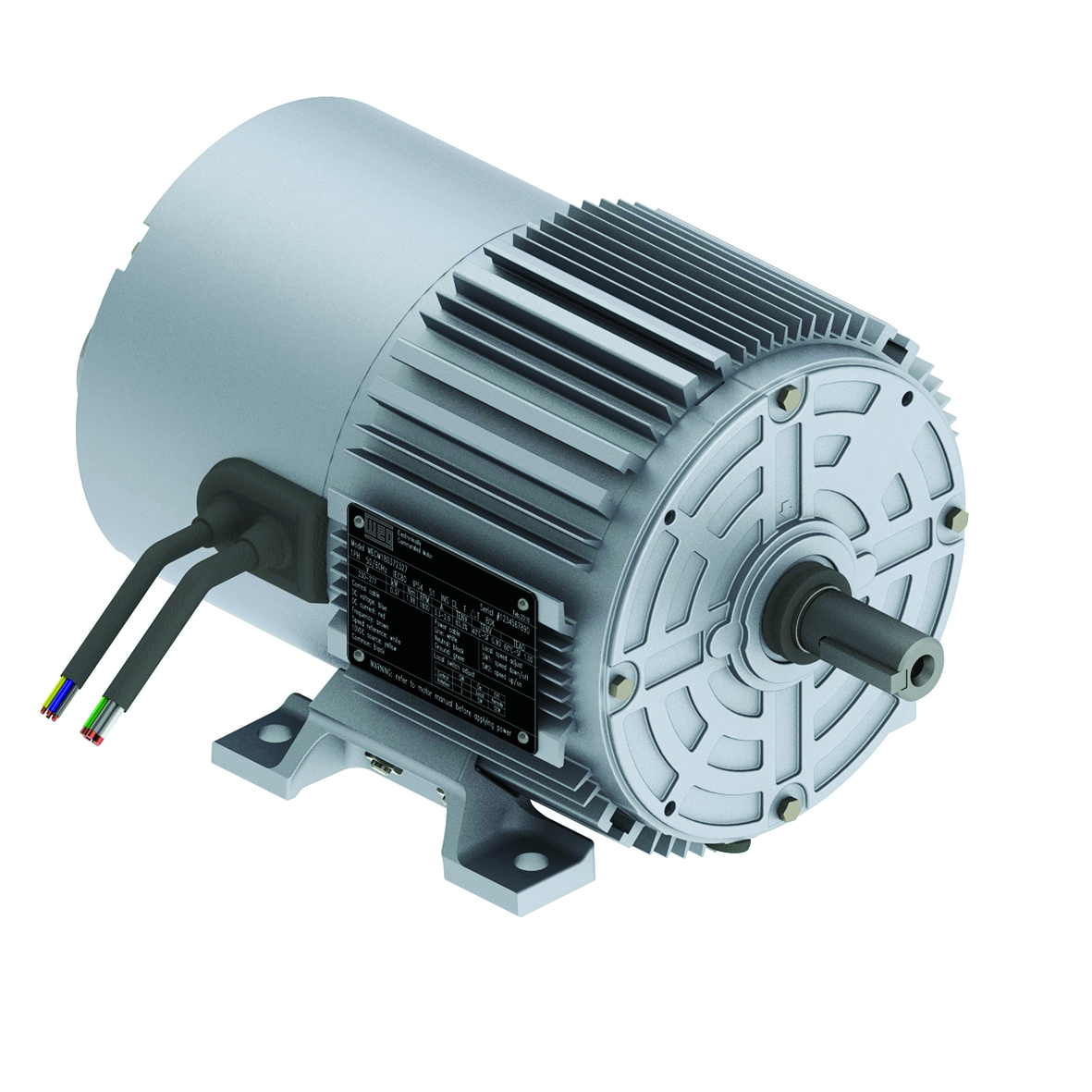

EC Motors

  • DESCRIPTION:
  • -0.12 kW to 55 kW -2, 4, 6 or 8 pole -230/400 V (Frames 63 to 100) -400/690 V (Frames 112 to 225) -525?550 V (Frames 63 to 225)

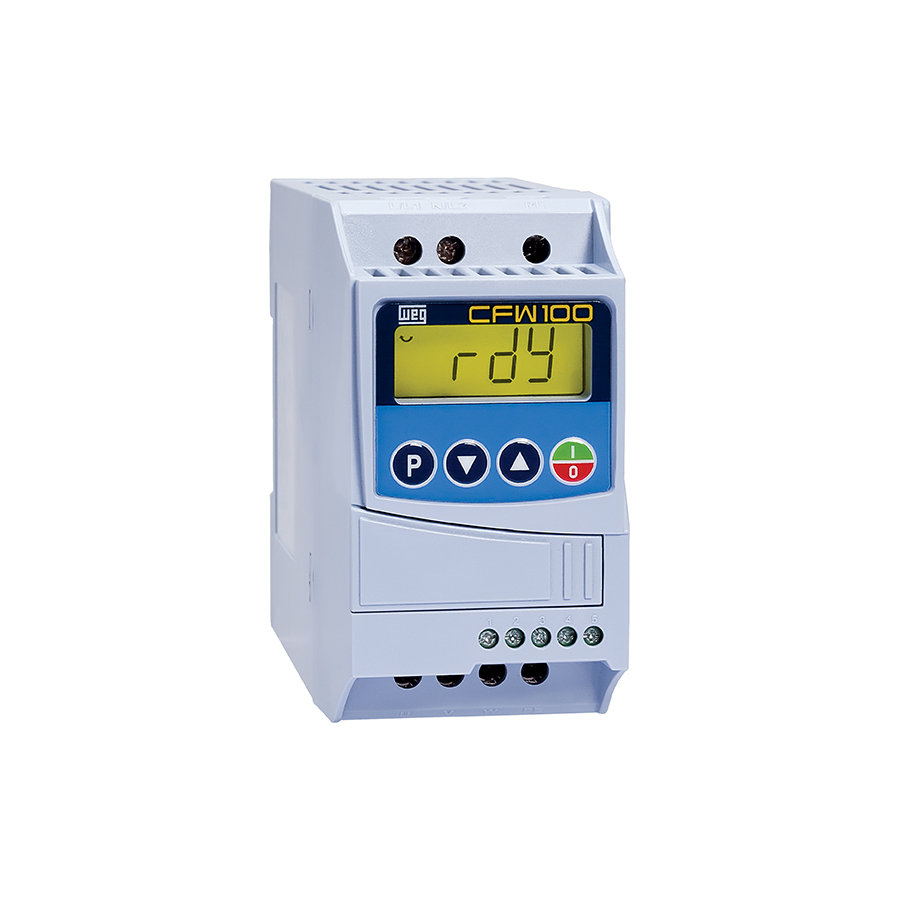

CFW100

  • DESCRIPTION:
  • - 0.18?0.75 kW power rating -Single phase -Power supply: 200?240 V -Overload capability: 150 % current for 60 seconds -IP20 protection degree

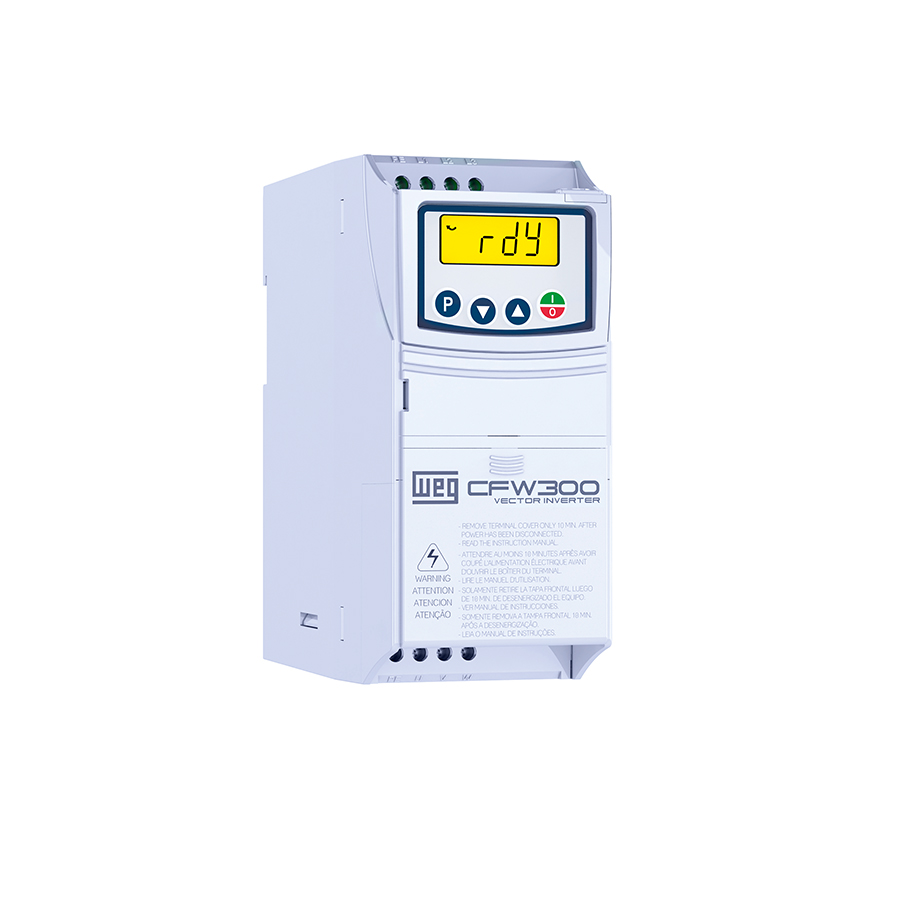

CFW300

  • DESCRIPTION:
  • - 0.18?0.75 kW power rating -Single phase and 3 phase -Power supply: 110?127 V / 200?240/380?480 V -IP20 protection degree

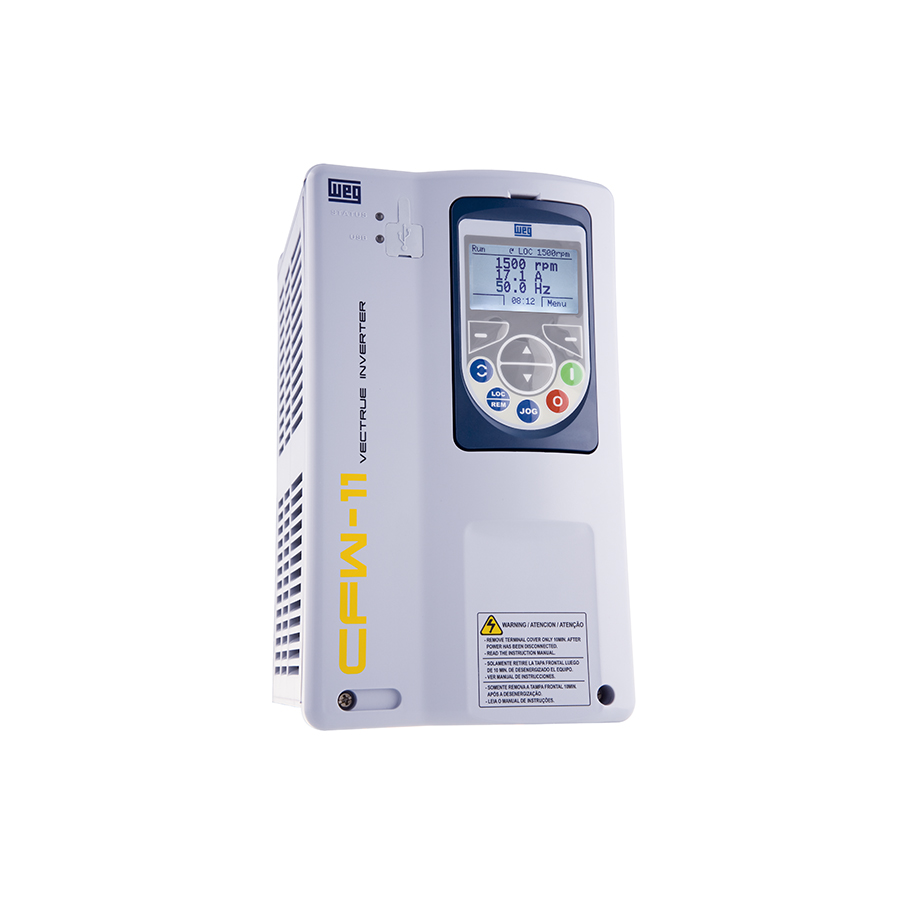

CFW11

  • DESCRIPTION:
  • -1.1–630 kW power rating -Single and 3-phase supply: 200?240/380?480/ 500?600/660?690 V -Overload capability: ND - 110 % / HD 150 % current for 60 seconds -IP20 or IP54 protection degree

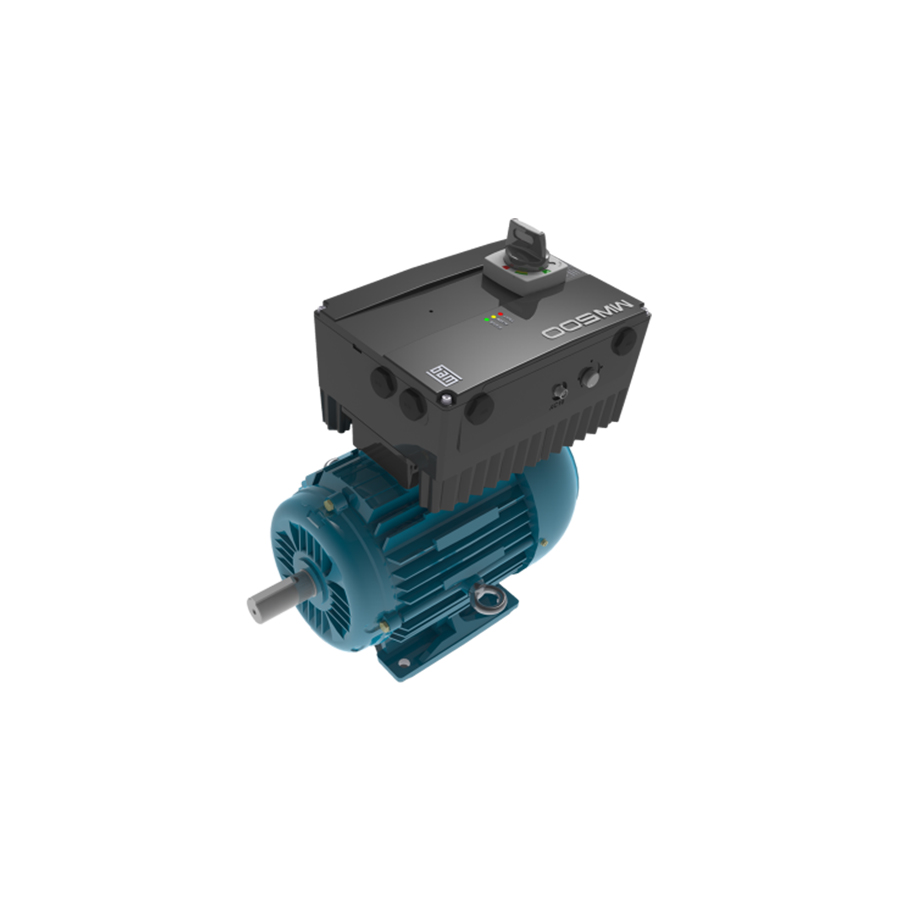

MW500

  • DESCRIPTION:
  • • 1.1?7.5 kW power rating • Single and 3-phase • Power supply: 200?240/380?480 V • HD (heavy duty) ratings • Wall or motor mounted

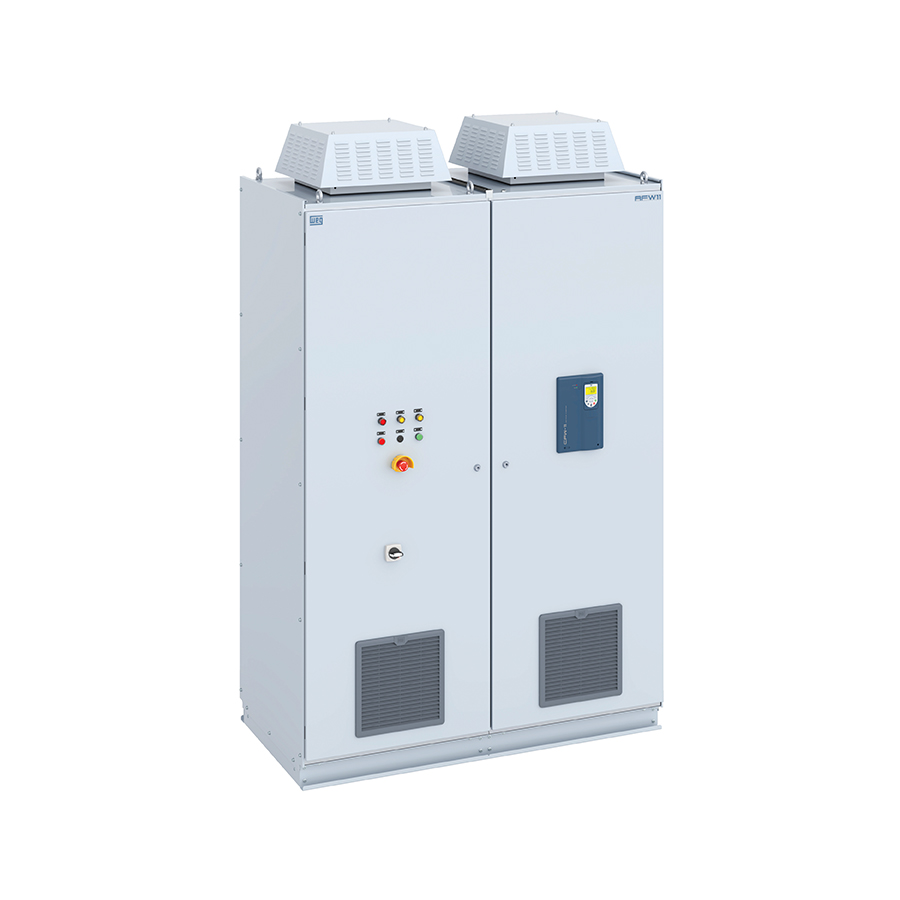

AFW11 Modular

  • DESCRIPTION:
  • • 300?1875 kW power rating • 3-phase • Power supply: 380?480/ 500?600/660?690 V • Overload capability: ND - 110 % / HD - 150 % current for 60 seconds • IP43 protection degree


CFW500

  • DESCRIPTION:
  • • 0.18?55 kW power rating • Single and 3-phase • Power supply: 200?240/380?480 V • Overload capability: 150 % current for 60 seconds • IP20/IP66 protection degree

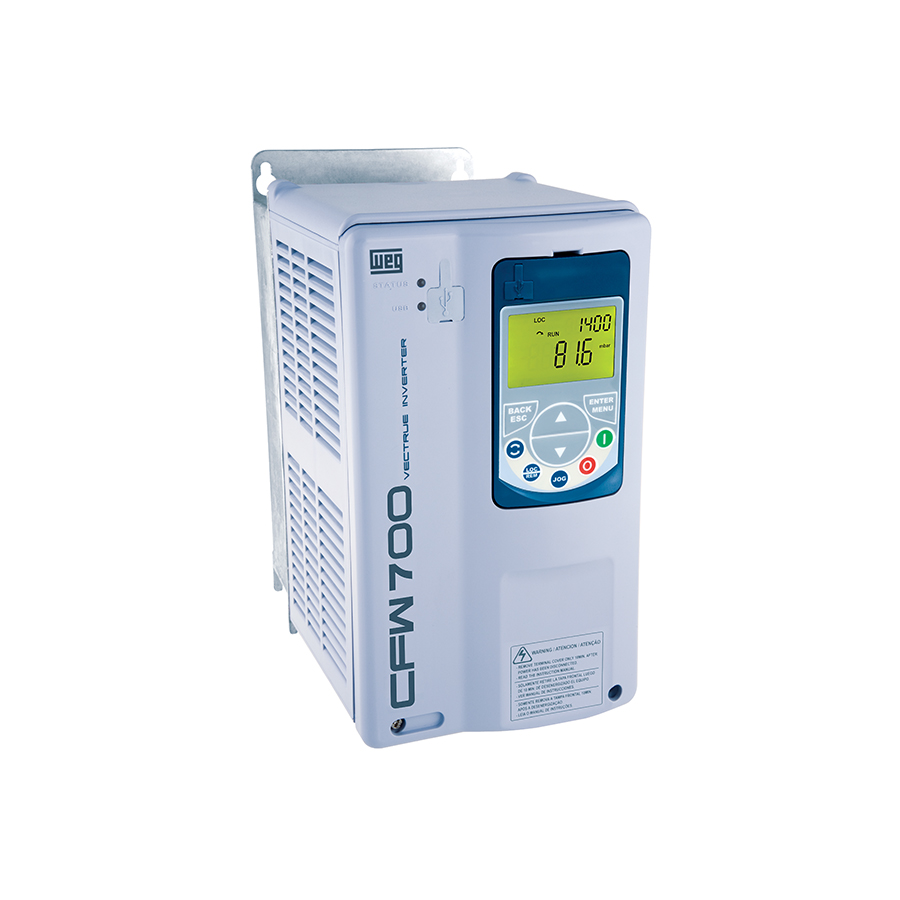

CFW700

  • DESCRIPTION:
  • • 1.1?110 kW power rating • Single and 3-phase • Power supply: 200?240/ 380?480/500?600 V • Overload capability: ND - 110 % / HD - 150 % current for 60 seconds • IP20 protection degree


CFW501 HVAC R

  • DESCRIPTION:
  • • 0.25?15 kW power rating • Single and 3-phase • Power supply: 200?240/380?480 V • ND (normal duty) ratings • IP 20 protection degree

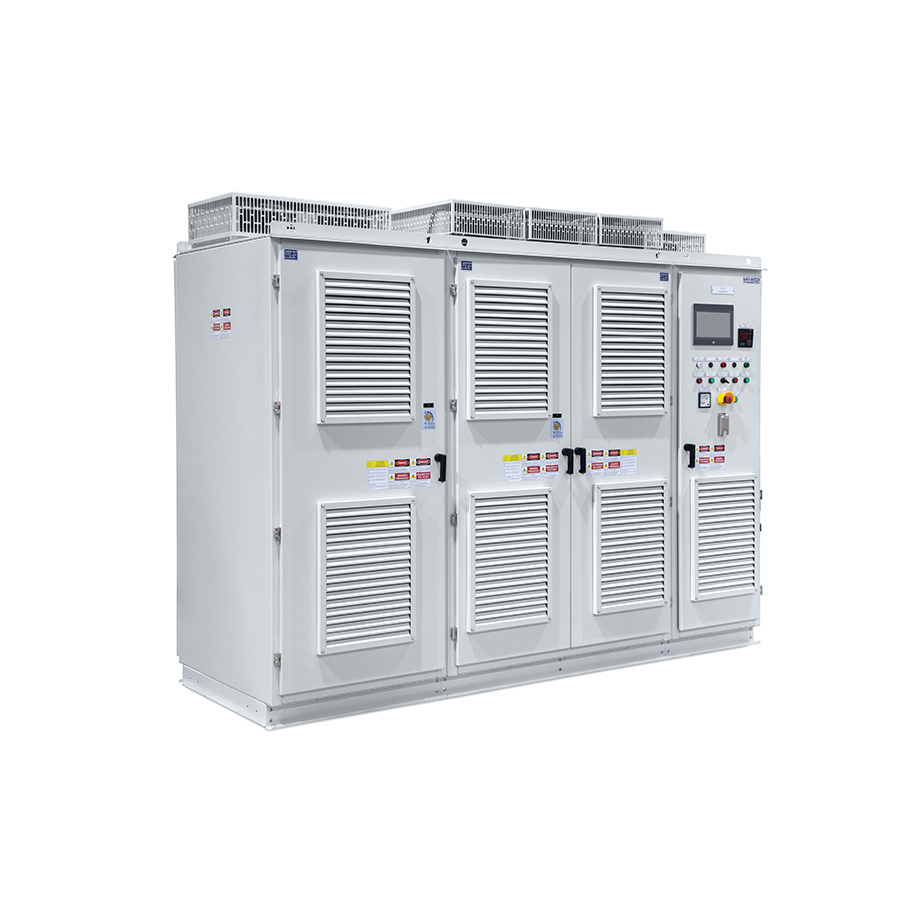

MVW01

  • DESCRIPTION:
  • • 3.3, 4.16, 6.6 kV (NPC) • Includes input switchgear if required • Separate ONAN transformer or integral dry type option. • Highest efficiency

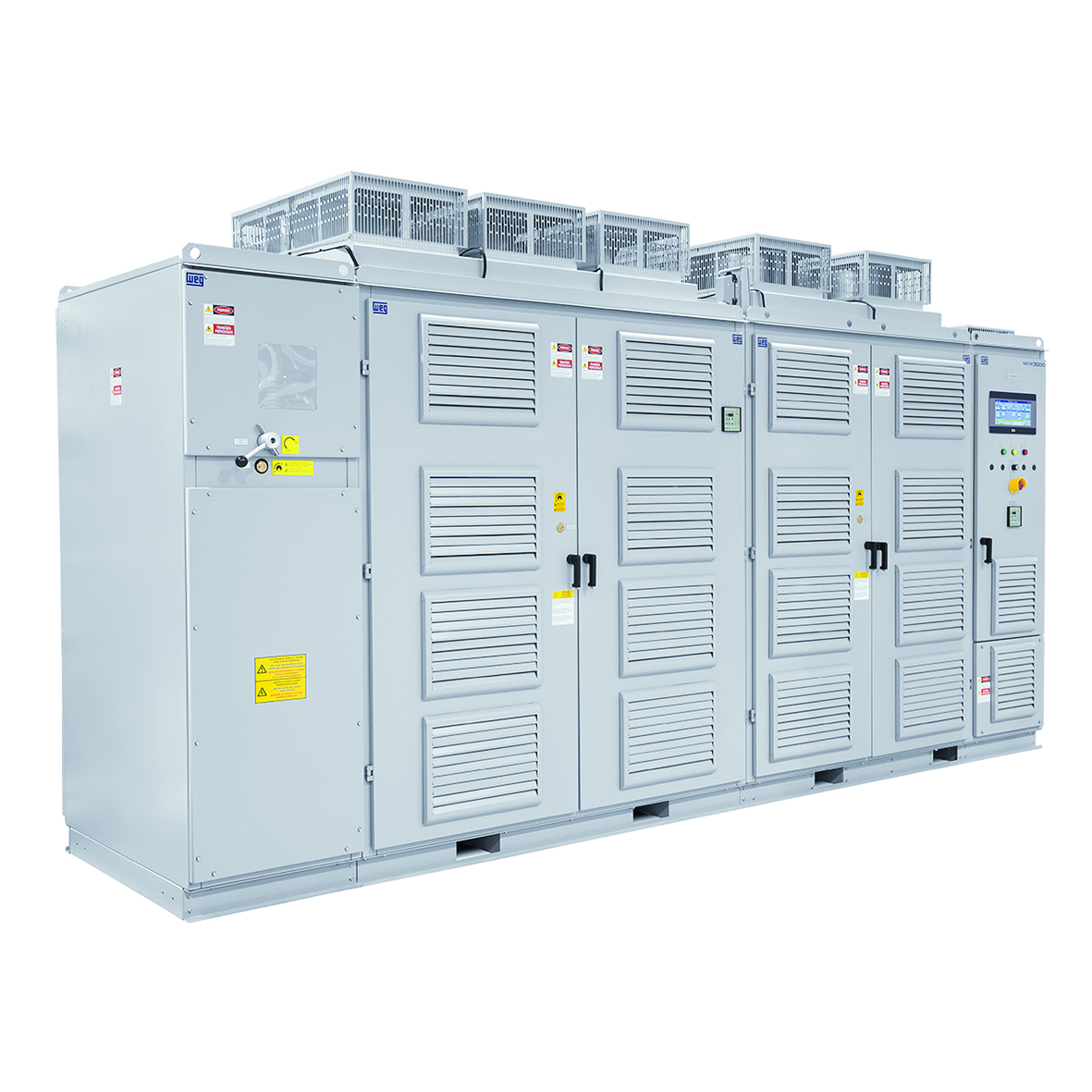

MVW3000

  • DESCRIPTION:
  • • 3.3 kV to 13.8 kV integral version (CHB) • Includes input switchgear if required • Multi-level output • Multi-pulse input for low harmonics

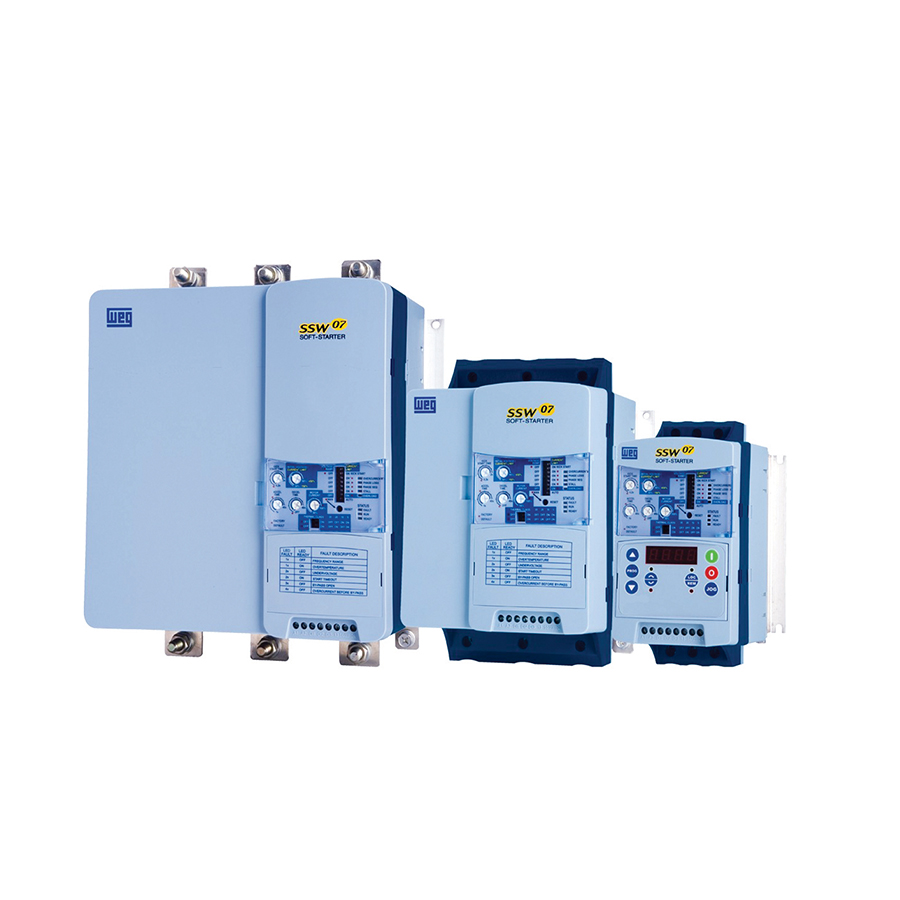

SSW07

  • DESCRIPTION:
  • • General purpose soft starters - light loads • Power rating: 4 to 300 kW • Voltage range: 200?575 V • Same control power board for 220 to 575 Vac • Blank/remote or local HMI • Over/under current • Over/under voltage protection • Current and voltage imbalance • Built-in by-pass • Ambient temperature: 0?55 °C • Profibus: DP, DeviceNet, Modbus-RTU via MFW • Pump control • Voltage ramp • Voltage kick-start • Current limit

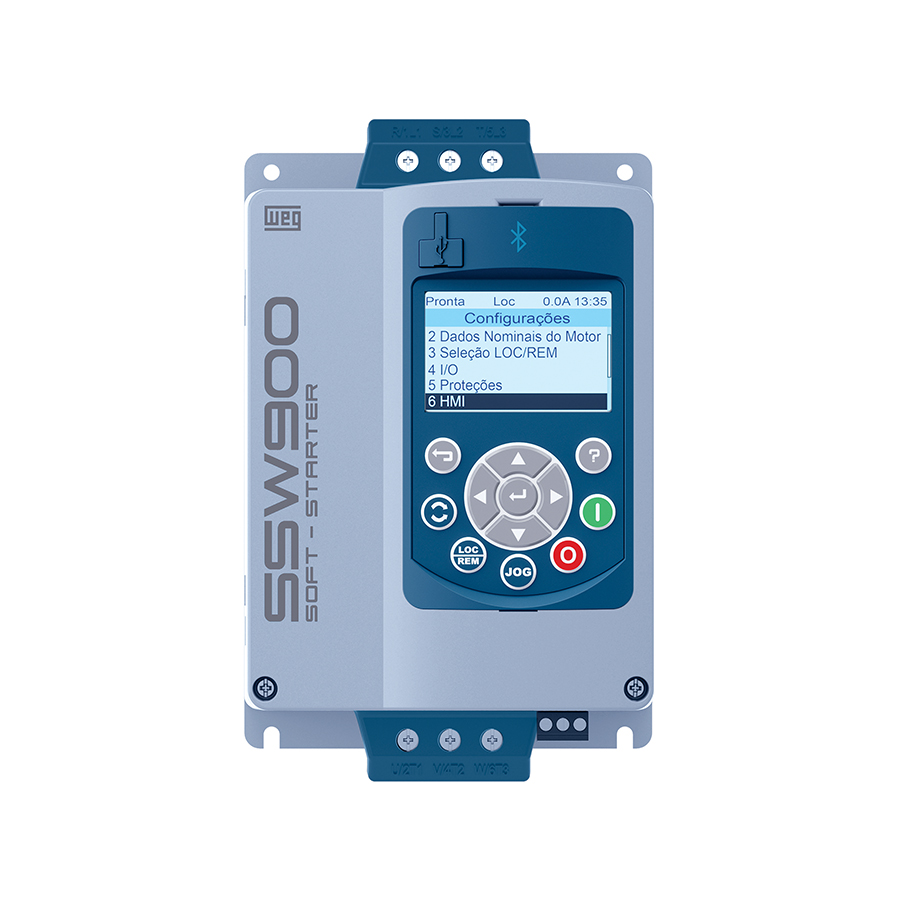

SSW900

  • DESCRIPTION:
  • • General purpose soft starter - heavy loads • Voltage range: 220?575 V for 3-phase power supply • Current range: 10 up to 1400 A 575 V • Overload capability: 300 % for 30 seconds, 10 Starts/hour for frame sizes A through D

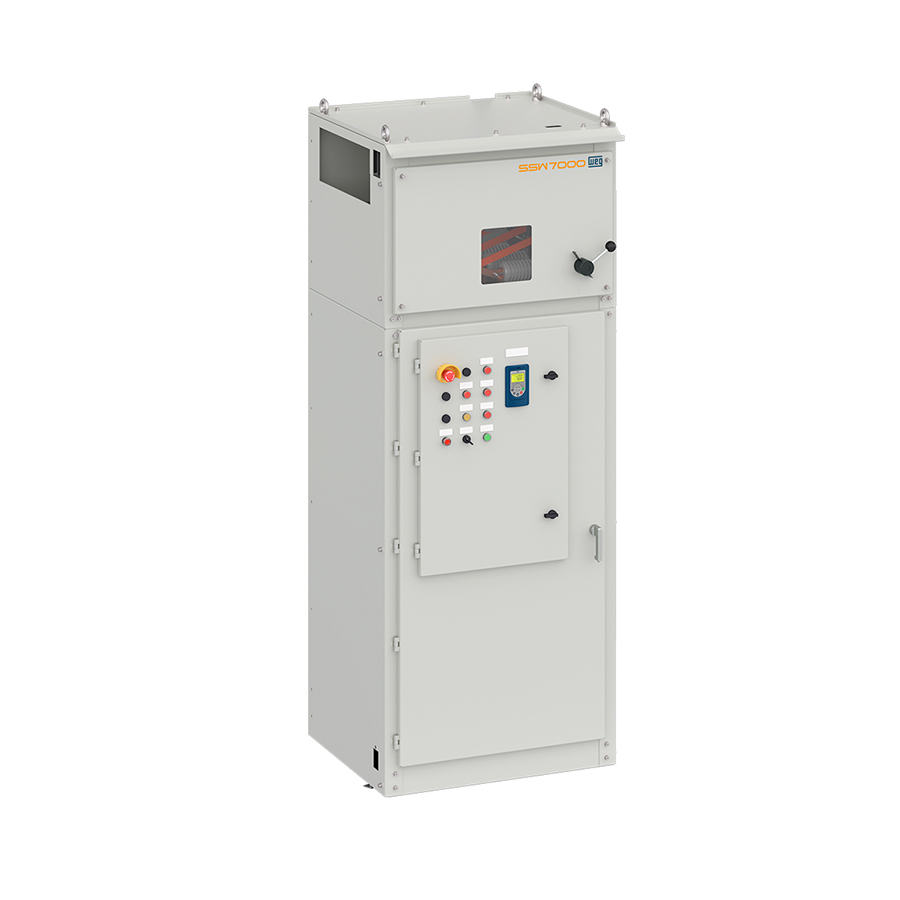

SSW7000

  • DESCRIPTION:
  • • General purpose soft starter - heavy loads • Voltage range: 220?575 V for 3-phase power supply • Current range: 10 up to 1400 A 575 V • Overload capability: 300 % for 30 seconds, 10 Starts/hour for frame sizes A through D


Enclosed Starters

  • DESCRIPTION:
  • • DOL starters single and 3-phase up to 450 kW • Star Delta starters up to 800 kW • Reverse starters up 355 kW


Contactors & Overload Relays

  • DESCRIPTION:
  • • 9−800 A • Designed to IEC 60947 • 3 and 4 pole options available • Fixed or additional auxiliary blocks


Smart Relays

  • DESCRIPTION:
  • • Supply Voltage 24VAC/DC or 110−240VAC/DC • Current measurement 0.25 to 840 A • Voltage measurement up to 690 V


Fuses

  • DESCRIPTION:
  • • NH type with 4 size and current range up to 1000 A • Class aR to protect semi conductors against short circuit 450−2000 A • Short circuit breaking capacity of 100 kA at 690 V

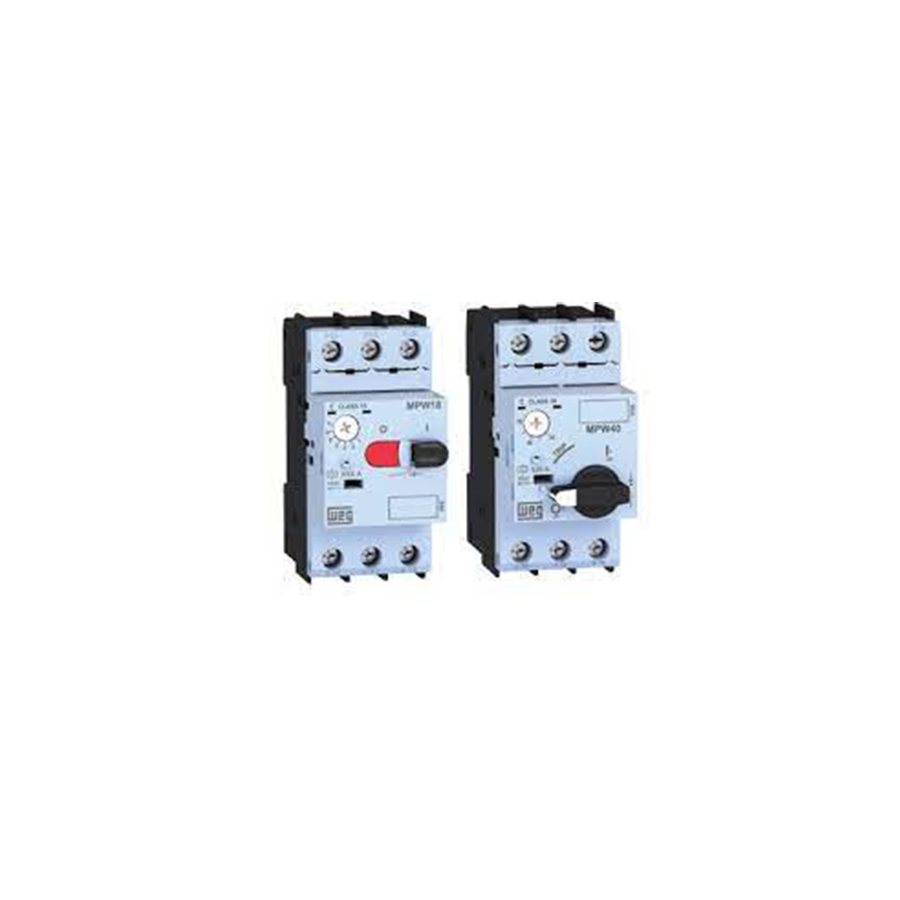

Circuit Breakers

  • DESCRIPTION:
  • • Rated current up to 100 A • Motor starting protection up to 45 kW • Adjustable thermal tripping for motor overload protection

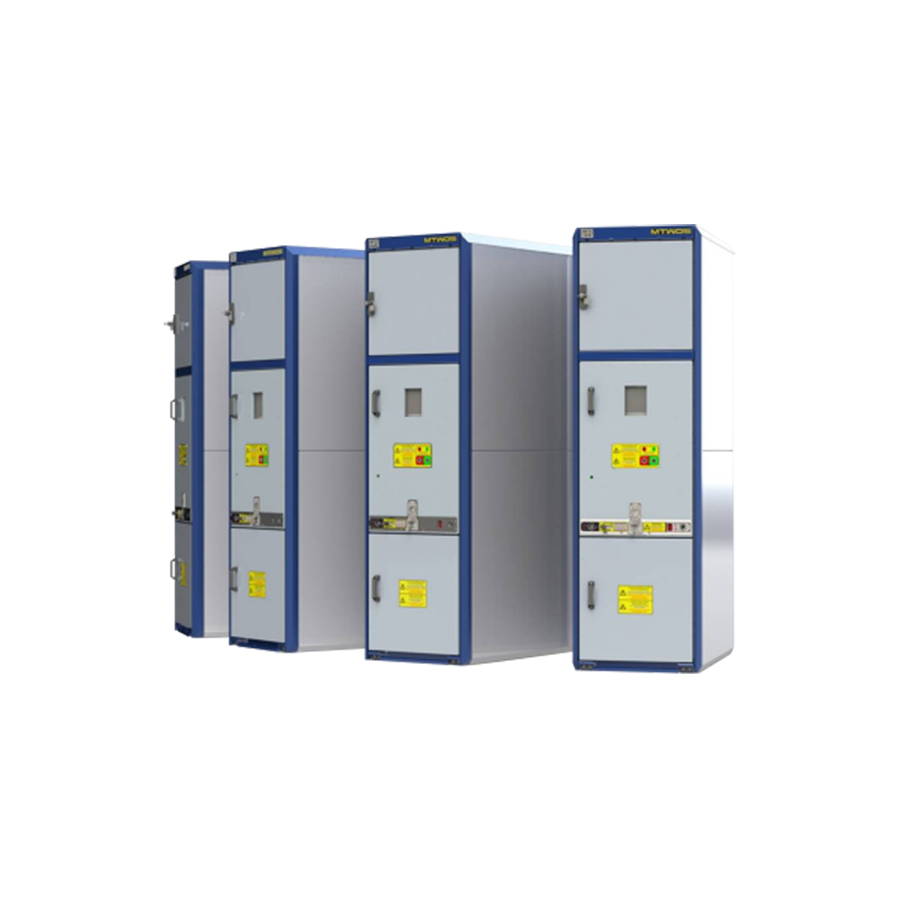

MTW05 11 kV Metal Clad

  • DESCRIPTION:
  • • 7.2 kV to 17.5 kV voltage range • 630 A to 2500 A rating • 31.5 kA (3s) withstand • Metal clad, fully withdrawable • IEC 62271-200 • IAC BF, ALR


CCW07 11 kV and 22 kV Compact

  • DESCRIPTION:
  • • 12 kV to 24 kV voltage range • 630 A (800 A upon request) • 20 kA (1s) withstand • Compact fixed type • IEC 62271-200 • IAC AFLR

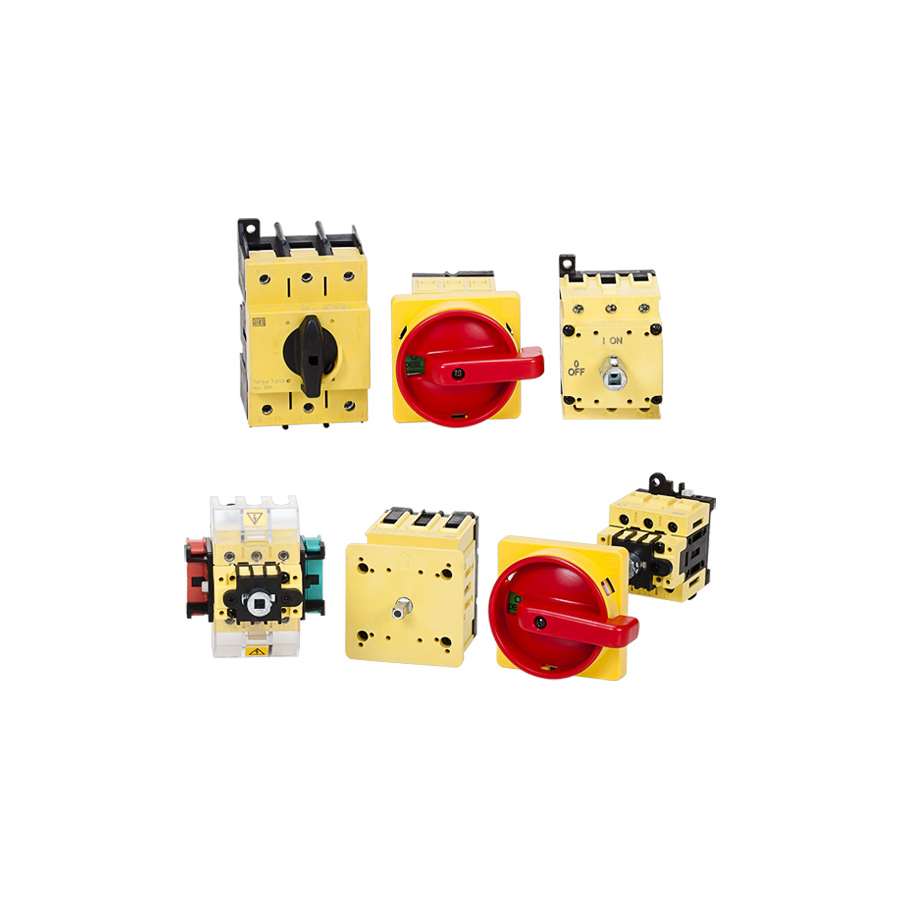

Switch Disconnectors

  • DESCRIPTION:
  • • Rated thermal current of 32, 40, 63, 80, 100, 125 and 160 A • Rated insulation voltage of 690 V • Door panel or base mounting • Fuse switch disconnectors also available

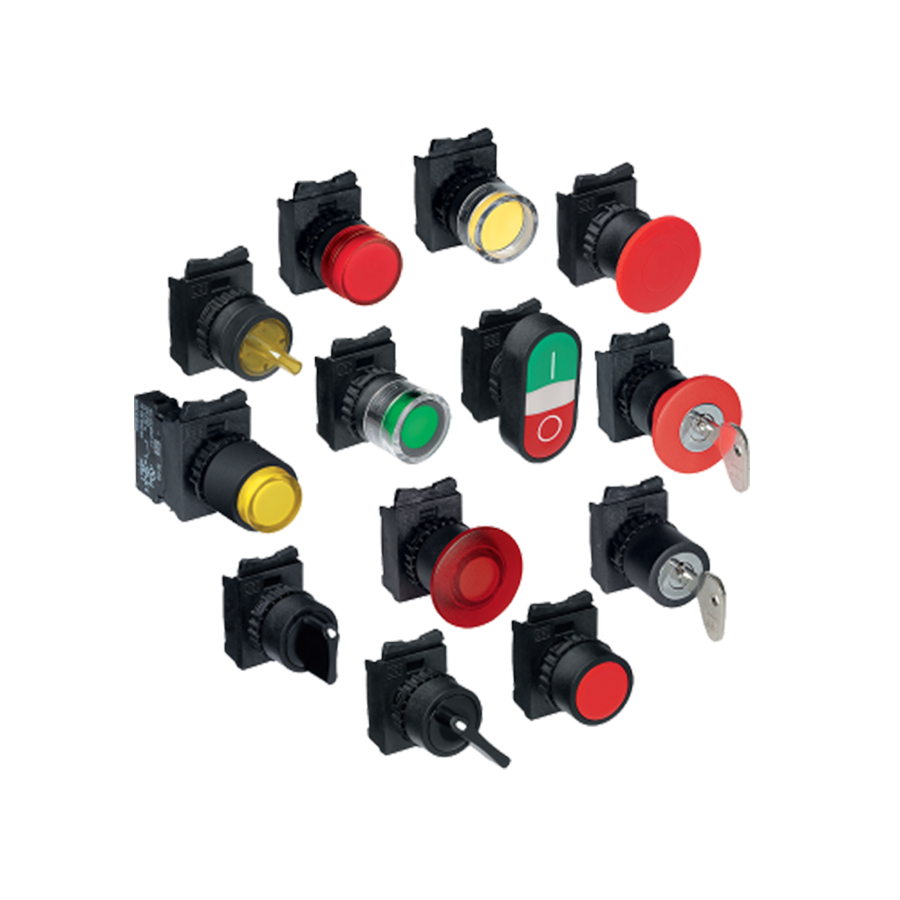

Pushbuttons & Pilot Lights

  • DESCRIPTION:
  • • Pushbuttons, pilot lights, selector switches, mushroom and E stop pushbuttons • In accordance with IEC/EN 60974-5-1 • IP66 degree of protection


Power Factor Correction

  • DESCRIPTION:
  • • Single phase unit: 0.37−20 kvar at 208−240 V • 3-phase unit: 0.37−35 kvar at 380−535 V • 3-phase module: 1.85−15 kvar at 380−535 V (up to 60 kvar with 4 modules in parallel)

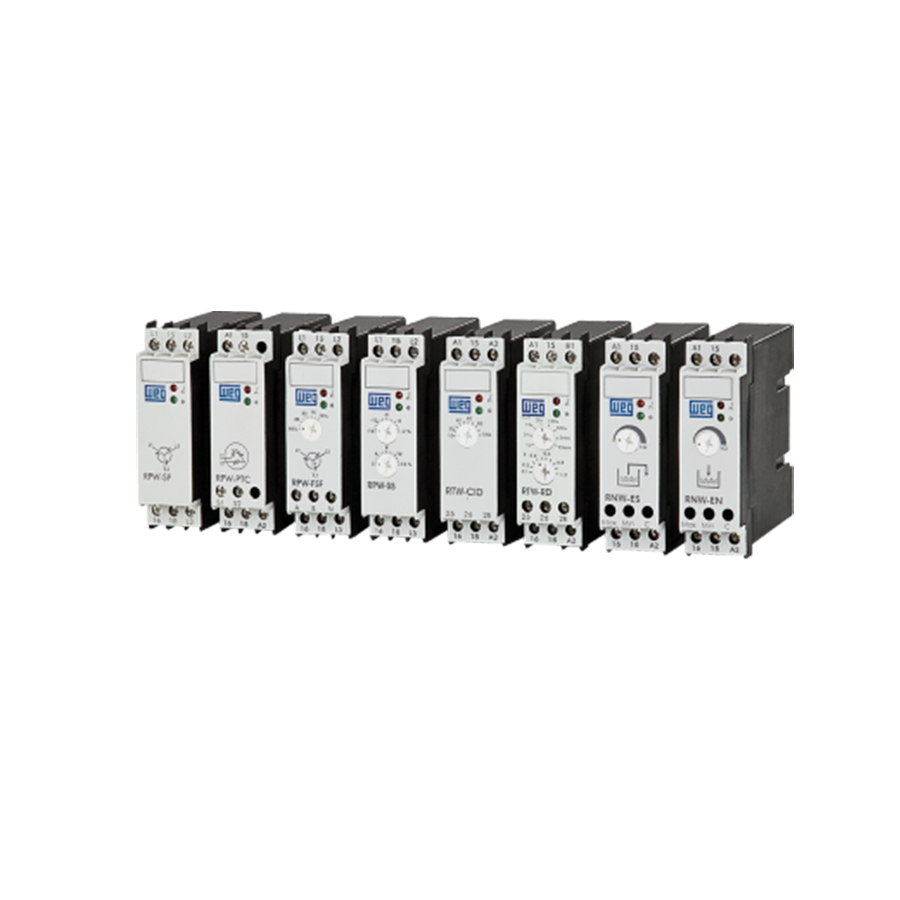

Electronic Relays

  • DESCRIPTION:
  • • RTW timers up to 150 hours with 9 different functions • RPW electronic monitoring relays • RNW level relays for filling or draining functions

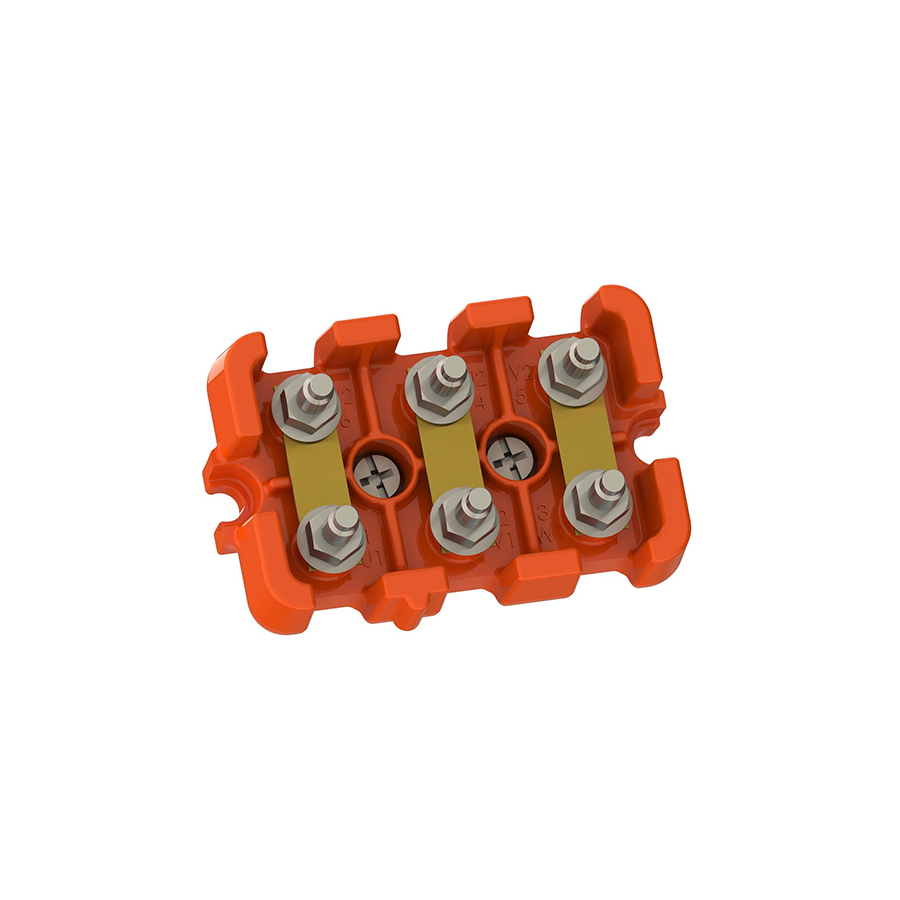

Terminal Blocks

  • DESCRIPTION:
  • (2.5−240 mm)

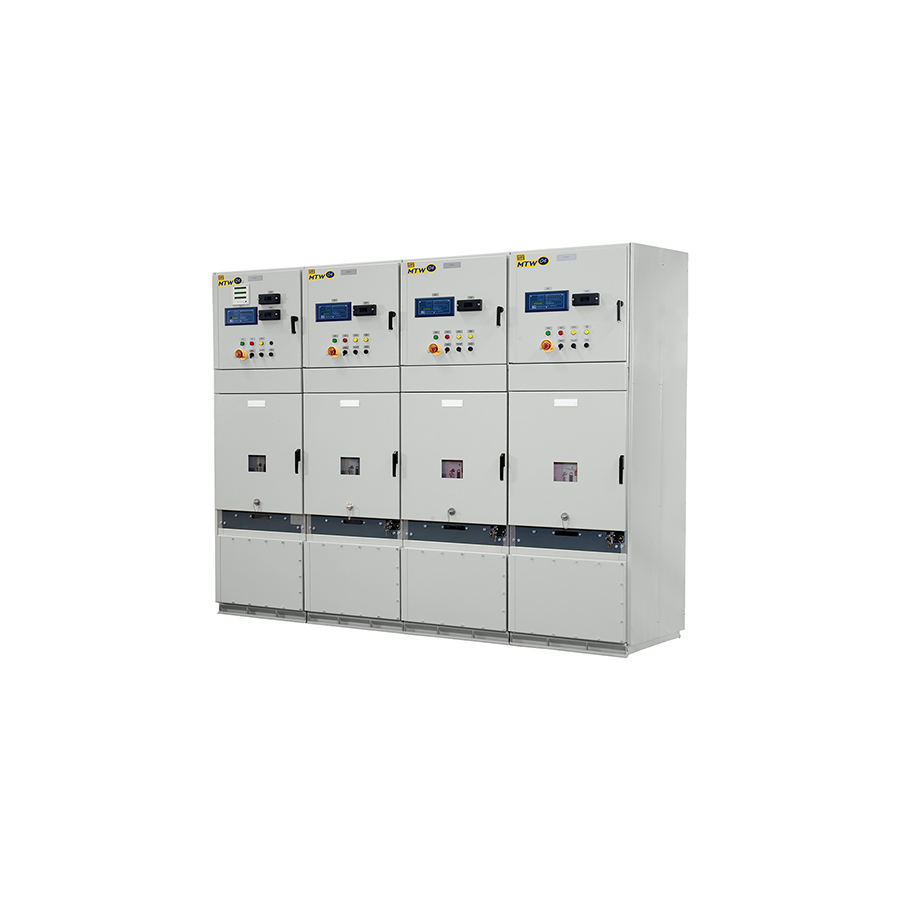

MTW04 22 kV and 33 kV Metal Clad

  • DESCRIPTION:
  • • 22 kV to 33 kV • Up to 4000 A • 31.5 kA (1s) withstand • Metal clad, fully withdrawable • IEC 62271-200 • IAC AFLR

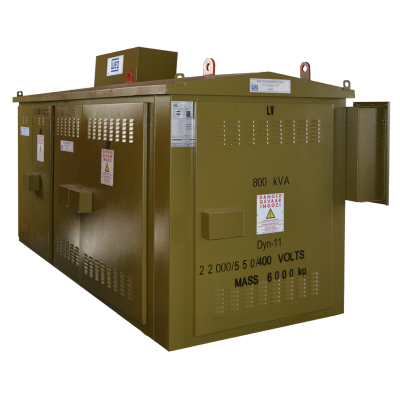

MINIATURE SUBSTATIONS

  • DESCRIPTION:
  • • Enclosure type A, B and C • Up to and including 1600 kVA • Customised units up to 33 kV for the African market • 6 mm standard high risk vandal proof Eskom approved minisubs • Locally manufactured • Manufacturing facility: WTA Wadeville • Municipal • Utility industry • Power generation • Industrial • Commercial

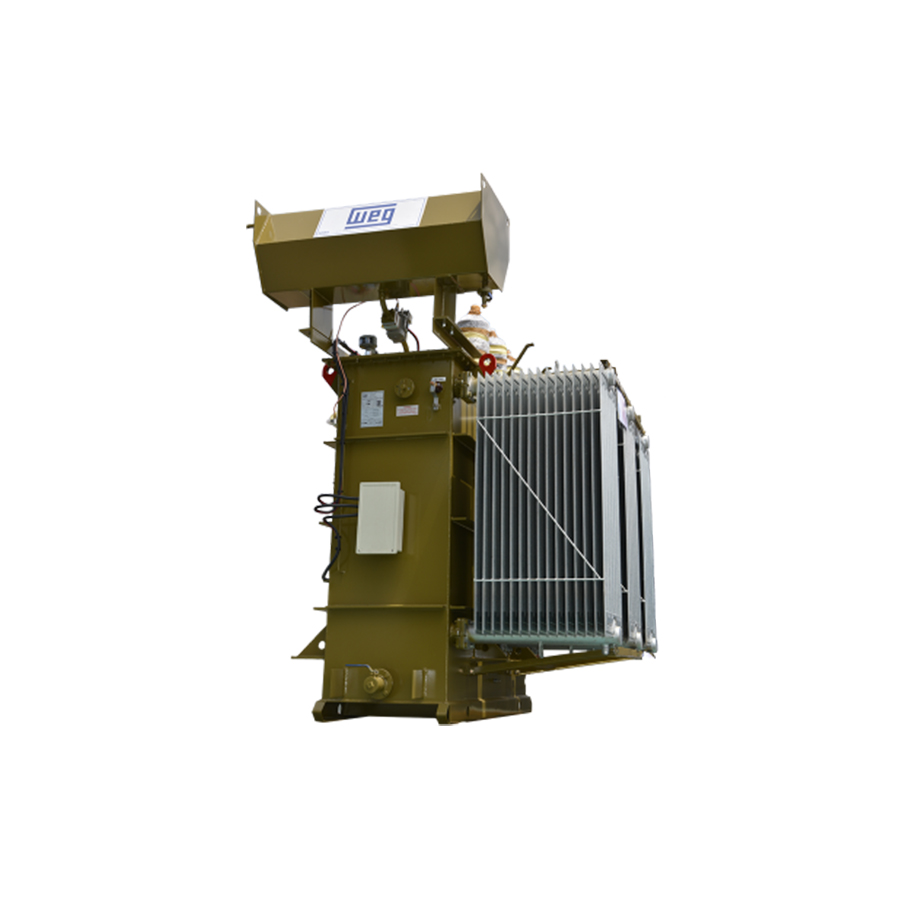

DISTRIBUTION TRANSFORMERS

  • DESCRIPTION:
  • • Custom designed oil filled transformers • Lighting and distribution 500 kVA to 3150 kVA • Windings options: copper or aluminium • Locally manufactured


POWER TRANSFORMERS

  • DESCRIPTION:
  • • Power 3150 kVA to 45 MVA 132 kV (locally manufactured in South Africa) • 50 MVA to 550 MVA 400 kV to order from Brazil


PHOTOVOLTAIC TRANSFORMERS

  • DESCRIPTION:
  • • Custom designed for PV applications • From 500 kVA up to 5 MVA, 33 kV • Free breathing or sealed • Winding options: copper or aluminium


Open, Canopy or Containerised Generator Sets

  • DESCRIPTION:
  • • Fully assembled in South Africa with fixed designs to EU, ISO and ABS standards • Standard diesel generator sets from 10 kVA to 770 kVA • Containerised or Plant Room diesel generator sets up to 3350 kVA • Sound and fuel installations as per local council requirements (SANS, ISO) • Multiple sets synchronised together including with the local utility supply • Peak & load lopping options • 190−690 V and MV up to 13 800 V • Frequency: 50 Hz and 60 Hz • Sound attenuated canopy up to 75 db(A) at 7 m • 8 hr fuel tank capacity • Exhaust system • AMF panel • AVR • Locally assembled and/or manufactured • Quality tested • Installed and commissioned by technicians • Custom designed solutions available for lower noise levels • Flexible design capabilities in all well known diesel engin- and controller brands

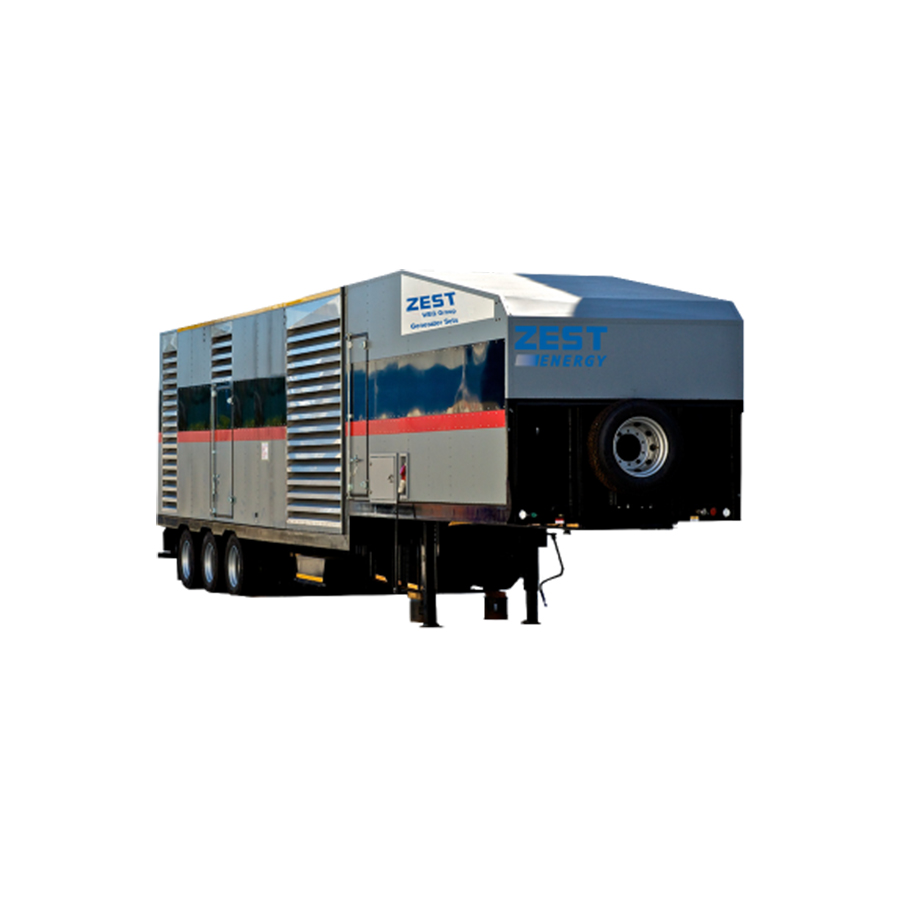

Mobile Generator Solutions

  • DESCRIPTION:
  • • Integrated power generation and energy solutions customised to your specifications • Custom designed mobile generator solutions • Purpose built trailers in accordance with road ordinance requirements • Generator cooling and lube oil on-board • On-board fuel storage systems • Synchronisation switchgear and protection systems, including import/export control • Accessible operator interface with HMI • Cable reel and quick cable coupling systems • Site specific electrical integration solution to ensure safe interconnection and operation

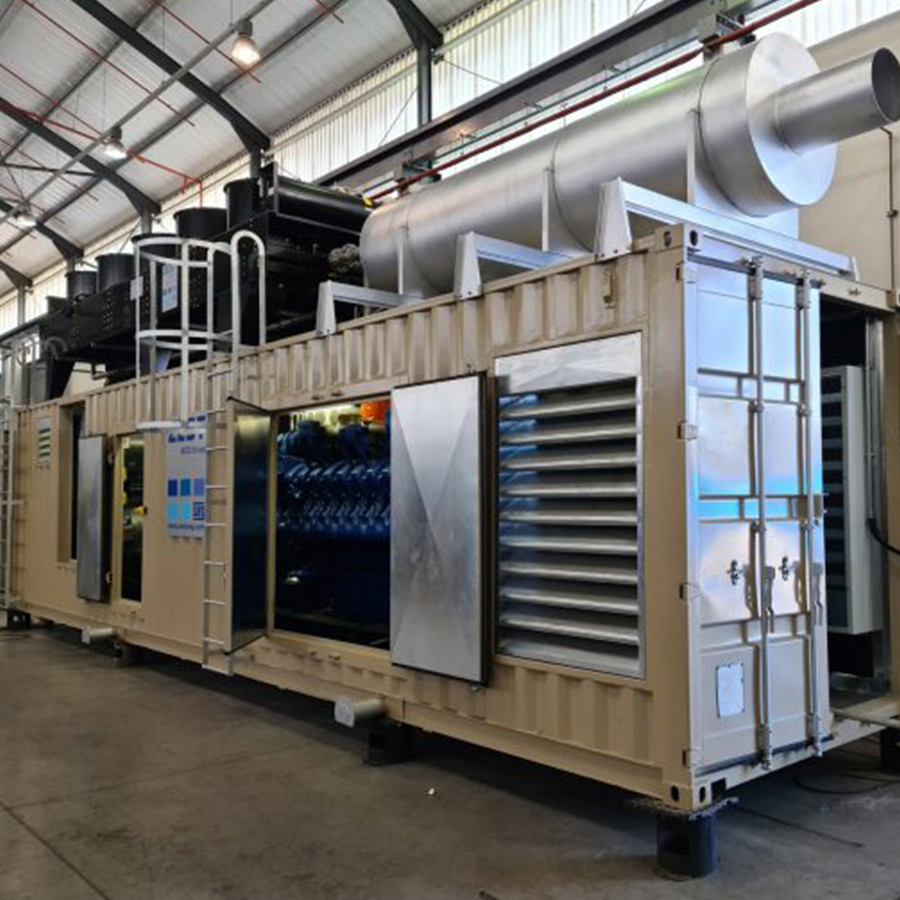

Diesel Power Generation Plants

  • DESCRIPTION:
  • • Complete power generation plants - Design, engineering, project management and training services - Installation and commissioning • Configurations - Open type sets - Containerised sets - Custom-engineered sets • Generation and synchronisation options - Medium Voltage (MV) - Low Voltage (LV) • Plant control systems - Parallel and island operational modes - Load management - Plant synchronisation and protection systems - Power import/export control • Electrical integration solutions at LV and MV • Balance of plant scope - Earthworks and civils - Bulk fuel storage and fuel control systems - Oil lubrication (new and used oil) systems - Piping, valves and instrumentation - Plant lighting, earthing and lightning protection systems
